LICITTI Battery Monitor

  • Los Angeles & Germany in stock!!!
  • Suitable a wide variety of battery systems

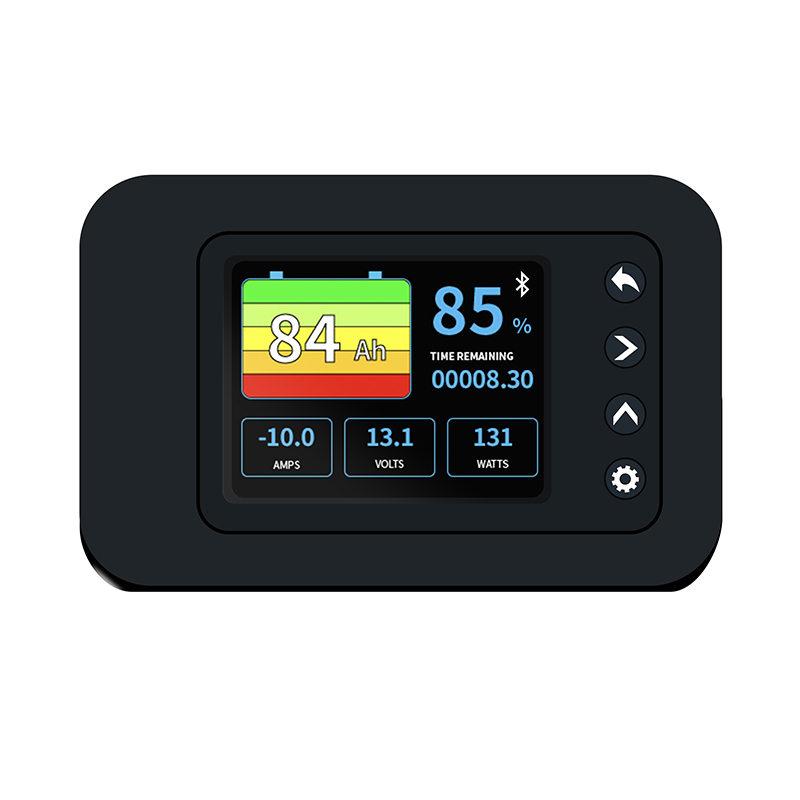

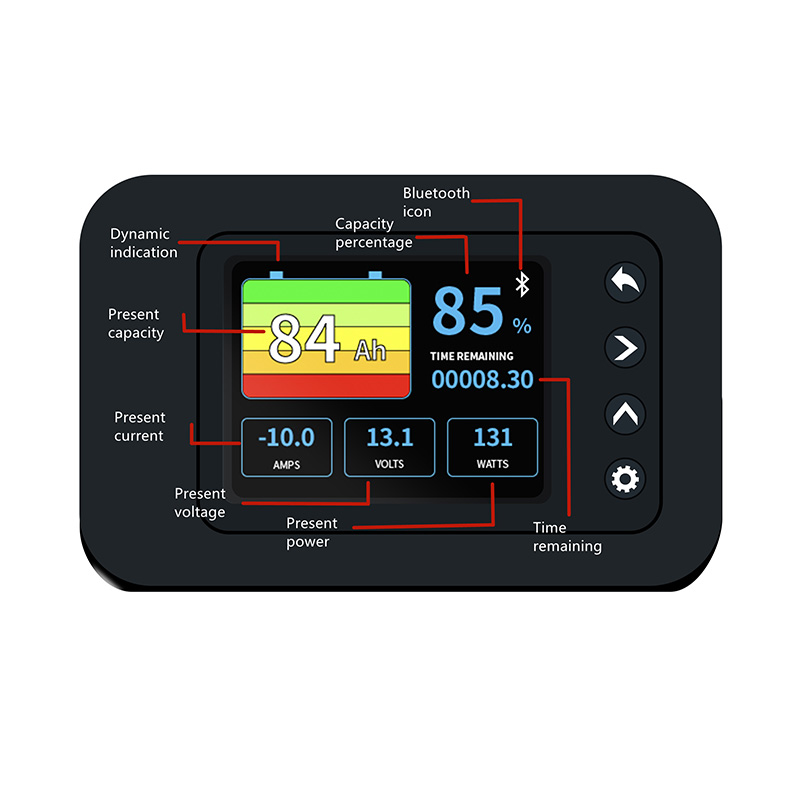

  • Battery capacity, capacity percentage, voltage, current, power, time remaining
  • Two screen interface, four buttons, easy to operate
  • Simple installation
  • Programmable alarm, high volt alarm, low volt alarm & low capacity alarm
  • 500Amps quick connect shunt with PCB
  • Wide voltage range: 10V – 120V, wide capacity range: 0.1 – 1000.0Ah
  • Color LCD display, clear at a glance
  • Advanced APP, download from Apple store or Google store
  • One-button clear battery capacity calibration; one-button make battery capacity full calibration
GET THE PRICE
Buy Now
Product catalog Licitti Battery monitor
Wiring program of 4 battery in parallel
Wiring program of 4 battery in series
Wiring program with details
Facebook
WhatsApp
Twitter
LinkedIn
Skype
Pinterest

LICITTI Battery Monitor OVERVIEW

For different types of batteries, different voltages, new and old batteries, in order to better and easier to understand the use of the battery state and remaining capacity information, we developed this advanced battery display. Combined with complex software algorithms, we collect and calculate the voltage and current of a battery and display it with simple numbers and ICONS.Compared with other similar products on the market, LI-BM500 has the following advantages:

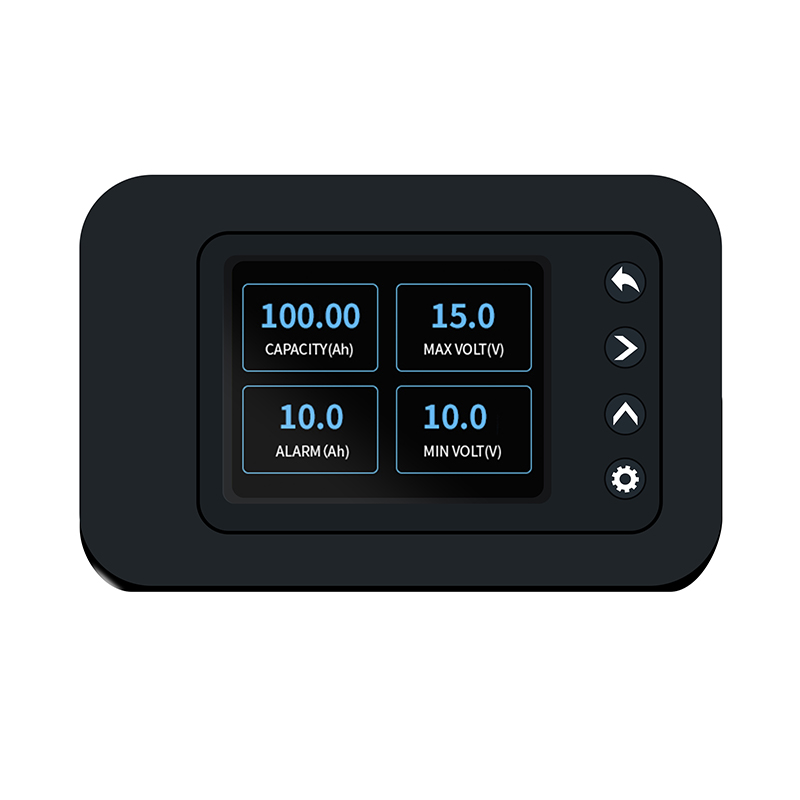

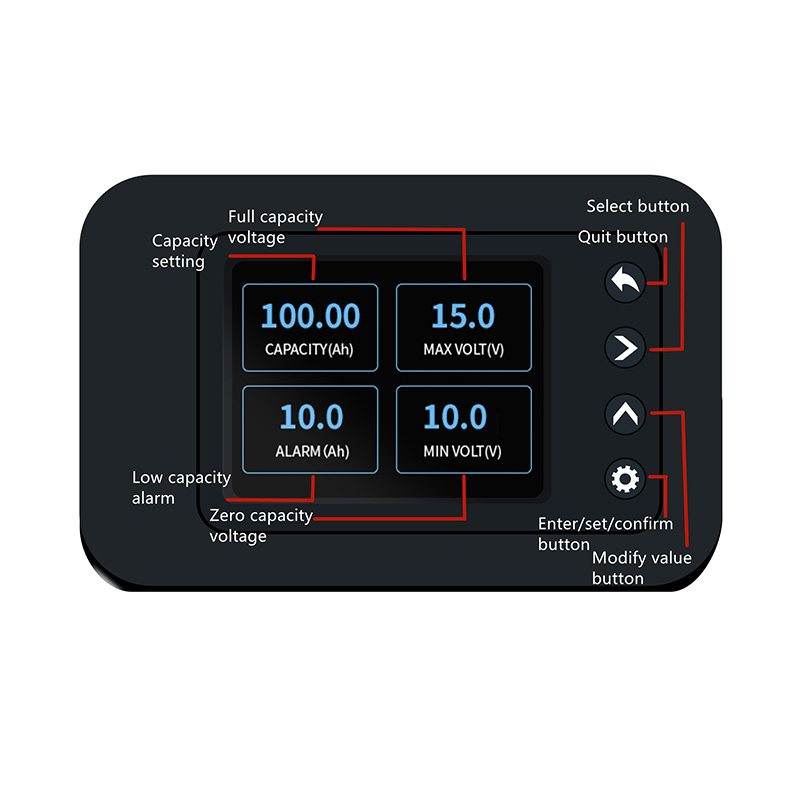

Clear display interface and operation interface, combined with four physical buttons, easily set capacity, maximum voltage, minimum voltage, capacity alert to meet different needs.

Meanwhile, download the Android or IOS APP to do fast and easy settings.

Clear installed diagram, clear at a glance. The installation card with the monitor makes the installation hole position simple and clear.

With the Bluetooth connection, to monitor the battery information on Android or IOS APP.

GET A QUICK QUOTE NOW!

Applications

  • Solar power systems
  • Off-grid power systems
  • Commercial vehicles
  • Marine applications
  • Industrial power supply
  • Camper/utility vans

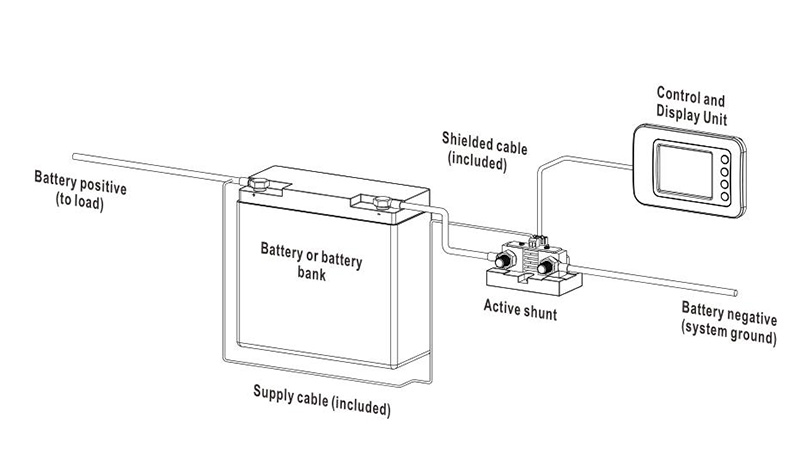

Wiring Diagram

LICITTI Battery Monitor (5)

SPECIFICATIONS

Parameter
LI-BM500
Supply voltage range
10 – 120 VDC
Battery capacity range
10 – 1000.0 Ah
Max measured current
500 A
Power consumption
≤ 1 W
Voltage accuracy
±1 %
Current accuracy
±1 %
Capacity accuracy
±1 %
Temperature range
-20°C – +50°C
Communication
Bluetooth, RS485
Weight (LCD screen)
125*82*21 mm
Dimension (LCD screen)
110 g
Protection class
IP20
Standards
EN 62368-1:2014+A11:2017
EN 50663:2017
ETSI EN 301 489-1 V2.2.3(2019-11)
ETSI EN 301 489-17 V3.2.4(2020-09)
ETST EN 300 328 V2.2.2(2019-07)
GET IN TOUCH WITH LICITTI

Licitti is your best battery system supplier

Contact Form Demo (#3)
LICITTI BG
Download LICITTI From Google Play & Apple Store

Licitti Battery Monitor is an advanced application via Bluetooth wireless interface.

Licitti Battery Monitor is an application via Bluetooth wireless interface. Connecting with device is a high precision battery capacity tester with coulometer function, to monitor battery voltage, charging current and discharging current, battery capacity, charging time and remaining time etc. It’s suitable for mobile power, portable devices, e-car, solar power system, UPS and so on.
