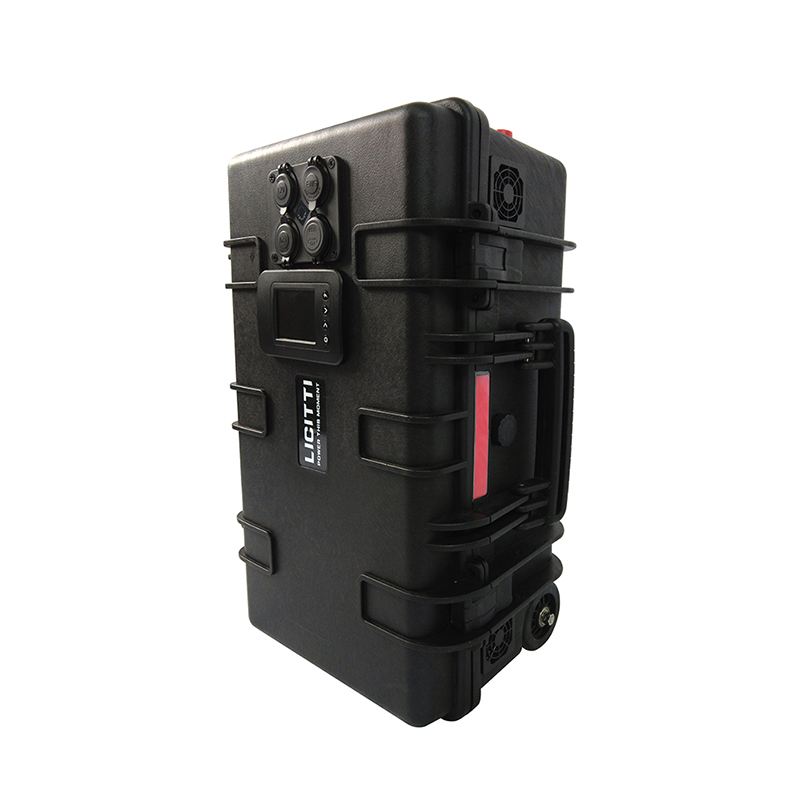

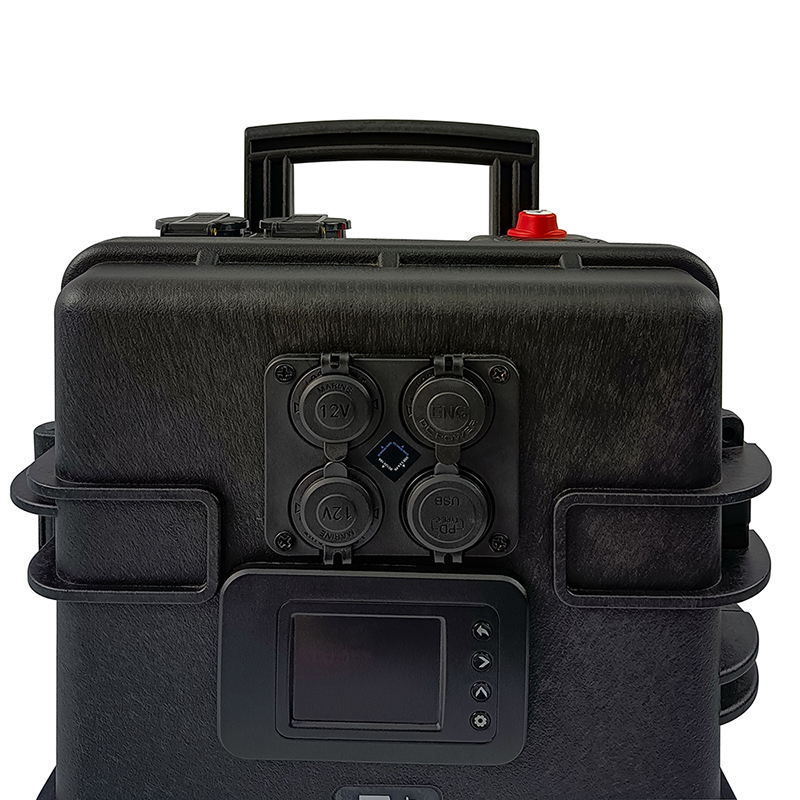

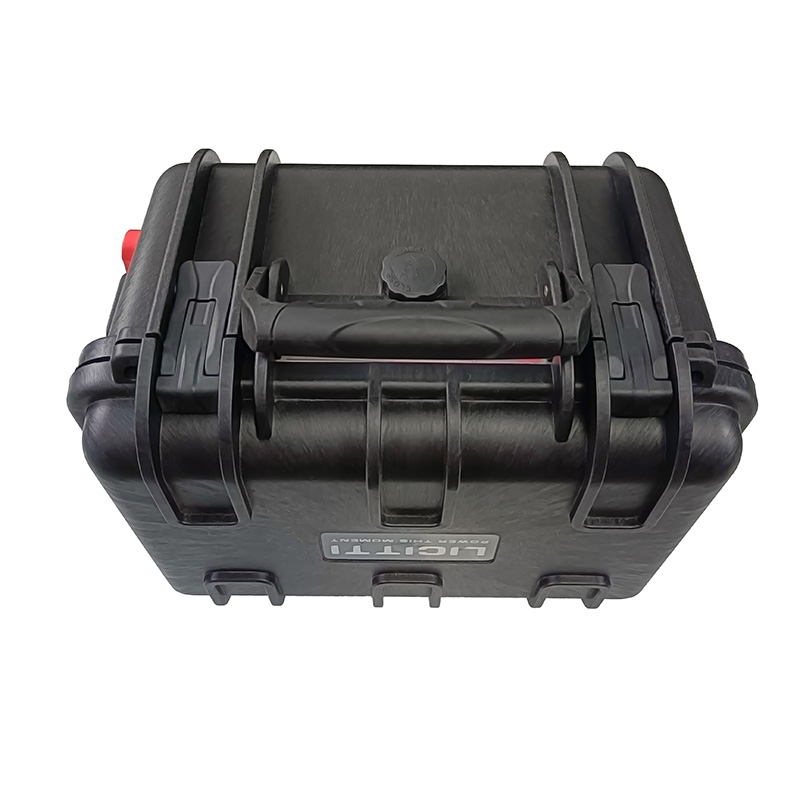

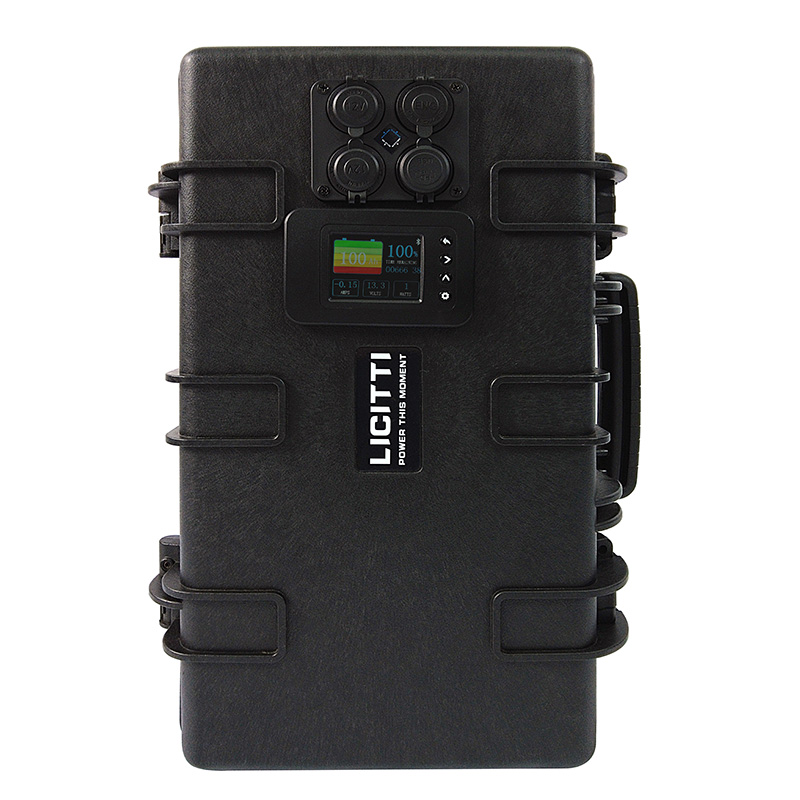

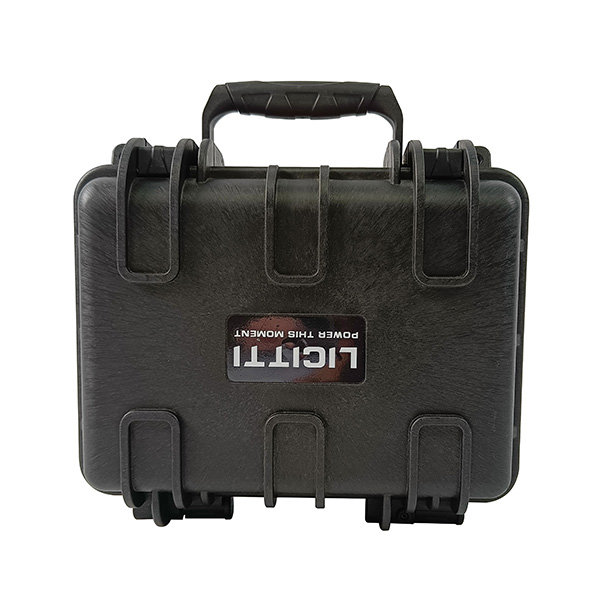

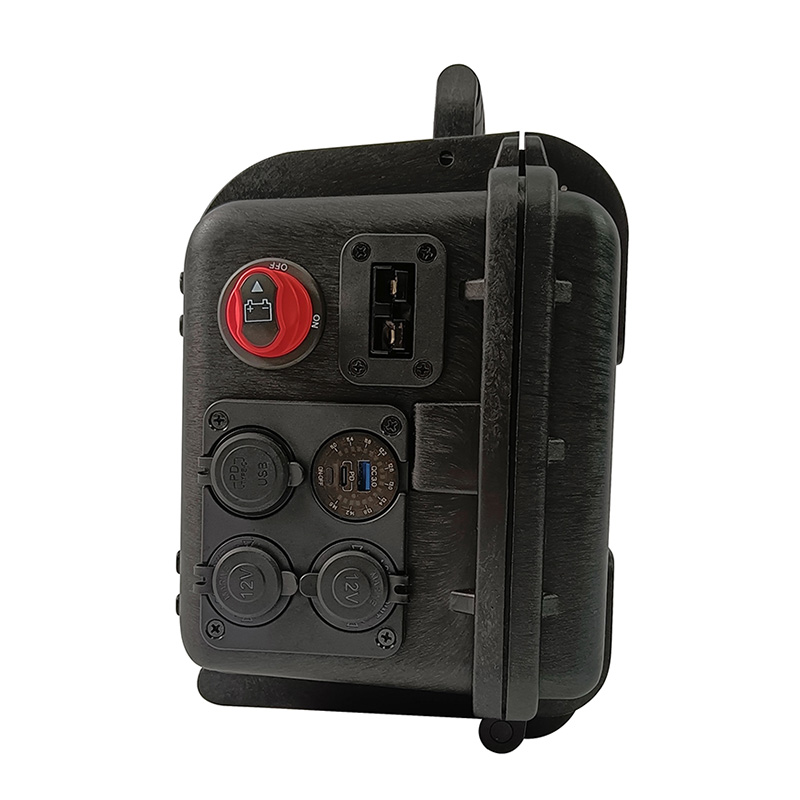

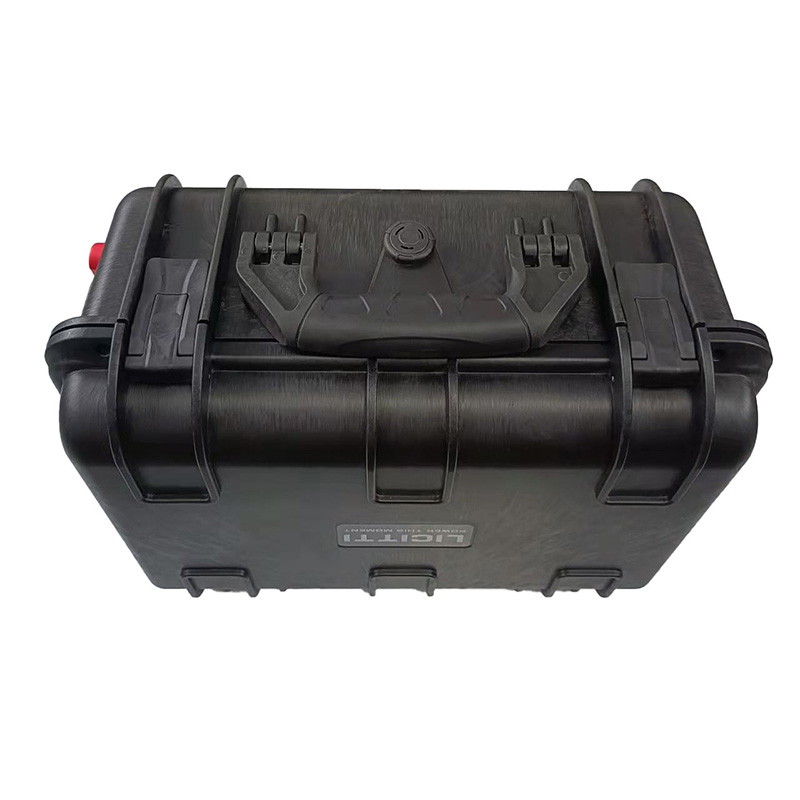

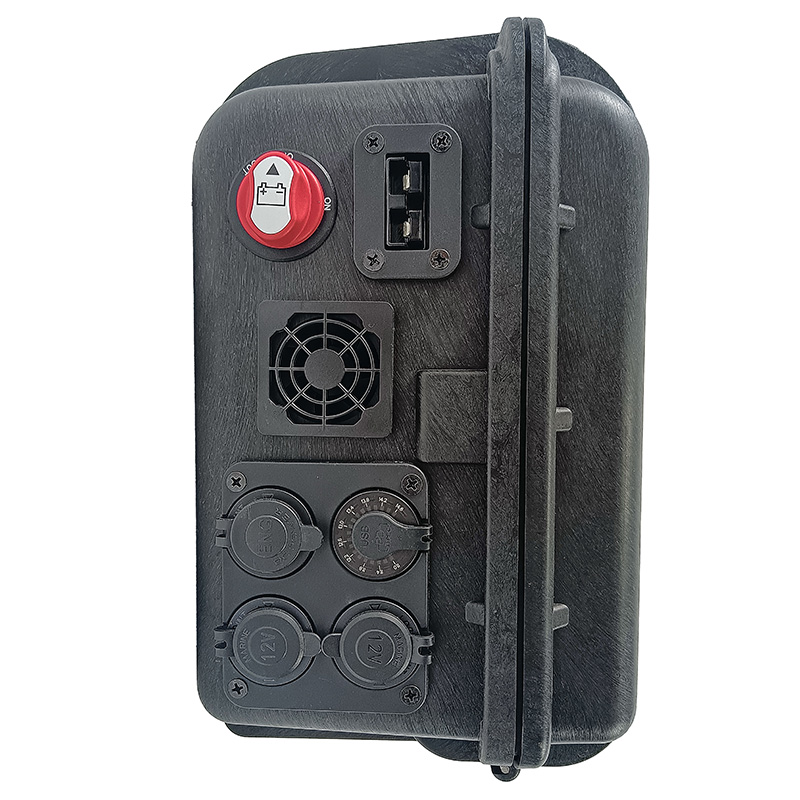

Portable power case is designed for harsh operating environment with modified nylon case, supporting 12V in-vehicle charging and solar charging(max 20A). High quality LiFePO4 battery built-in for long service life with different capacity. Customized DC ports & AC power meet different requirement.
Model No. | LPK60 | LPK80-AC | LPK120-AC | ||
Battery Type | LiFePO4(Lithium iron phosphate) | ||||
Battery Voltage | 12.8V | ||||
Capacity | 60Ah | 80Ah | 120Ah | ||
Case material | Nylon UL94 V-0 | ||||
Battery Lifespan | 2000+ Life cycles | ||||
BMS Capability | 60A | 120A | 200A | ||
AC Rate Power / Surge Power(max) | / | 1000W/2000W | 2500W/5000W(230V/AC) | ||
1500W/3000W(110V/AC) | |||||
DC Outlet | 1 * Engal socket as solar input | ||||
1* 12V socket as 12V DC input | |||||
1 * 12V DC socket | |||||
1 * USB3.0 & PD | |||||
1 x 12V 50A Anderson outlet(input/output) | |||||
Accessories | Solar charging cable | ||||
12V DC charging cable | |||||
Anderson outlet cover | |||||
Operating Environment | Relative Humidity: 10%-90% | ||||
Operating Temperature: -10℃ to 50℃ | |||||
Dimension(mm) | L305*W269*H195 | L410*W342*H204 | L557*W348*H248 | ||
Weight(Kg) | 10.50 | 16.60 | 25.50 | ||
Licitti Battery Monitor is an application via Bluetooth wireless interface. Connecting with device is a high precision battery capacity tester with coulometer function, to monitor battery voltage, charging current and discharging current, battery capacity, charging time and remaining time etc. It’s suitable for mobile power, portable devices, e-car, solar power system, UPS and so on.
